LabVIEW Expert Tips to Fix Error -4500 in VeriStand Models!

Reported In

Software

• LabVIEW
• VeriStand
• VeriStand Model Generation Support for LabVIEW

Operating System

• NI Linux Real-Time

Issue Details

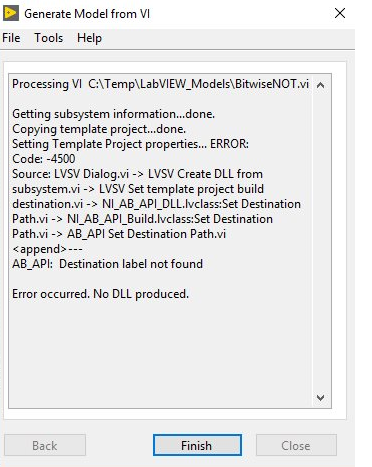

When I create a VeriStand model with LabVIEW for a NI Linux Real-Time (LinuxRT) target, I get Error Code -4500. What can I do to fix this error?

Solution

There might be incorrect installation sequence when installing the required software, make sure to follow the installation sequence below:

1. LabVIEW
2. LabVIEW Real-Time Module
3. VeriStand (Matching year with LabVIEW)
4. CompactRIO Drivers
5. C/C++ Development Tools for NI Linux Real-Time, Eclipse Edition

After successfully installing these dependencies, you will be able to export a VeriStand model in LabVIEW for a Linux RT target.

Additional Information

• Normally, an exported model has the format .lvmodel. For a Linux target, the format is .lvmodelso.
• Before exporting the model, first check there is no model with the same name in the destination folder. If there is already a model (even in a different format), you export will not success.
• Check if all the software needed are correctly licensed.
