High-Precision Pressure Threshold Testing for Gas Pipeline Integrity
Client: PT. Citra Tubindo
PT. Citra Tubindo, a leading manufacturer of industrial pipes, required a reliable and accurate method to test the pressure threshold and structural integrity of gas pipes. The goal was to simulate extreme pressure conditions to determine the exact failure point of pipes, ensuring compliance with safety standards and enhancing product reliability. Traditional testing methods lacked the precision needed to capture real-time stress distribution and deformation under high-pressure conditions.
Challenges
- High-Accuracy Stress Measurement: Measuring minute deformations and stress on pipes under extreme pressure with minimal error.
- Precise Failure Point Detection: Identifying the exact pressure level at which the pipe fails using strain gauge technology.
- Multi-Sensor Synchronization: Synchronizing data from four triaxial strain gauges placed at 90° intervals around the pipe to ensure cohesive analysis.
- Real-Time Data Integration: Seamlessly integrating strain gauge sensors with a data acquisition (DAQ) system for real-time monitoring and logging.
Haliatech Solution
Haliatech designed a customized testing system leveraging National Instruments (NI) hardware and LabVIEW software to address these challenges.
Key Solution Features:
- Full-Bridge Strain Gauge Configuration: Four biaxial strain gauges measured stress distribution across the pipe’s surface with high precision.
- NI cDAQ-9174 Chassis & NI 9236 Module: Provided robust, high-speed data acquisition capabilities for capturing real-time sensor data.
- LabVIEW-Based Monitoring System: Enabled real-time visualization, analysis, and data logging, allowing engineers to monitor pipe behavior under pressure dynamically.
- Synchronized Data Acquisition: Ensured simultaneous data collection from all sensors for accurate stress distribution analysis.
Products Used
- Biaxial Strain Gauges (4 units) – For measuring stress on all four sides of the pipe.

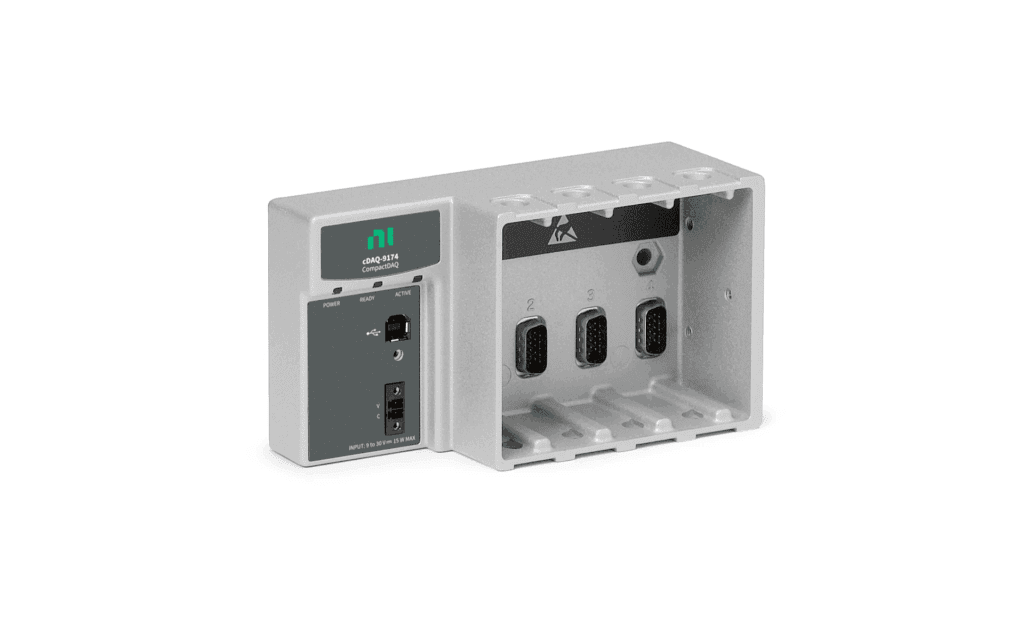

- NI cDAQ-9174 – Chassis module for housing DAQ modules.
- NI 9236 – High-accuracy analog input module for strain gauge measurements.
- LabVIEW – Software for real-time monitoring, analysis, and data logging.
Results Achieved
- Precise Failure Point Identification: Accurately determined the pressure threshold at which pipes fail, ensuring compliance with safety standards.
- Real-Time Stress Monitoring: Enabled dynamic observation of stress distribution and deformation during testing.
- High Data Accuracy: Achieved minimal measurement error through synchronized multi-sensor data acquisition.
- Efficient Data Logging: Streamlined the process of recording and analyzing test results for quality assurance.
