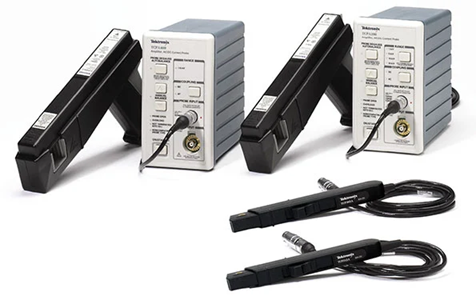

Current Probes

Tektronix current probe solutions offer:

The broadest range of AC/DC and AC-only current probes
Measurement accuracy from uAs to 2000 A
Best-in-class bandwidth up to 120 MHz
Best-in-class current clamp sensitivity down to 1 mA
The only products with 3rd Party Safety Certification (UL, CSA, ETL)
The only products with bare wire voltage ratings
Automatic readout and scaling when used with Tektronix oscilloscopes so you don’t have to convert volts to amps or manually set the scaling

Model	Max Current (DC)	Max RMS Current	Peak Current	Min Current	Bandwidth	Rise Time	Datasheet
A622	100 A	71 A	100 A	50 mA	100 kHz	—	Datasheet
A621	—	1000 A	2000 A	10 mA	50 kHz	—	Datasheet
CT2	—	2.5 A	36 A	1 mA	200 MHz	< 500 ps	Datasheet
CT1	—	0.45 A	12 A	200 µA	1 GHz	< 350 ps	Datasheet
CT6	—	0.12 A	6 A	200 µA	2 GHz	< 200 ps	Datasheet
TRCP0300	300 A	—	—	250 mA	30 MHz	—	Datasheet
TCP305A	50 A	35.4 A	50 A	5 mA	50 MHz	< 7 ns	Datasheet
TRCP3000	3000 A	—	—	500 mA	16 MHz	—	Datasheet
P6021A	—	10.6 A	250 A	10 mA	60 MHz	< 5.8 ns	Datasheet
TRCP0600	600 A	—	—	500 mA	30 MHz	—	Datasheet
TCP312A	30 A	21.2 A	50 A	1 mA	100 MHz	< 3.5 ns	Datasheet
P6022	—	4 A	100 A	1 mA	120 MHz	< 2.9 ns	Datasheet
TCP2020	—	20 A	100 A	10 mA	50 MHz	≤ 7 ns	Datasheet
TCP0020	20 A	20 A	100 A	10 mA	50 MHz	< 7 ns	Datasheet
TCP303	150 A	150 A	500 A	5 mA	15 MHz	< 23 ns	Datasheet
TCP0030A	30 A	30 A	50 A	1 mA	120 MHz	< 2.92 ns	Datasheet
TCP404XL	500 A	500 A	750 A	1 A	2 MHz	< 175 ns	Datasheet
TCP0150	150 A	150 A	500 A	5 mA	20 MHz	< 17.5 ns	Datasheet
