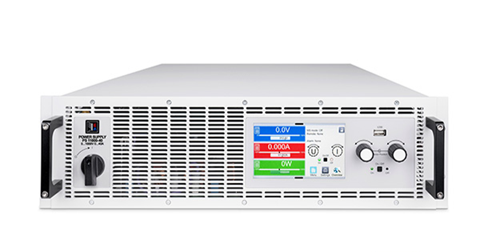

The EA 20000 Series and 10000 Series bidirectional DC power supplies bring a host of capabilities and efficiencies. Bidirectional regenerative supplies are more cost-effective and environmentally friendly because they recover energy and feed it back into the grid with >96% efficiency to reduce heat, noise and HVAC costs. True autoranging delivers maximum power across a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.
20000 Series models offer 3 independent channels, fast 1ms response times, and integrated safety sense functionality for sensitive applications. EA supplies can parallel easily up to 3.84MW in output power, at up to 2000VDC. They come standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and more.
| Series | Power | Voltage | Current Range | Channels | Datasheet | Product Manual |
|---|---|---|---|---|---|---|
| EA-PSB 10000 4U | 0–30 kW | 0–60 V up to 0–2000 V | 0–40 A up to 0–1000 A per channel | 1 Channel | Datasheet | Product Manual |
| EA-PSB 20000 Triple 4U | 0–10 kW per channel | 0–60 V up to 0–920 V | 0–40 A up to 0–340 A per channel | 3 Channels | Datasheet | TBC |
| EA-PSB 10000 3U | 0–5 kW / 0–10 kW / 0–15 kW | 0–60 V up to 0–2000 V | 0–20 A up to 0–170 A per channel | 1 Channel | Datasheet | Product Manual |
| EA-PSB 20000 Triple 3U | 0–5 kW per channel | 0–60 V up to 0–920 V | 0–20 A up to 0–170 A per channel | 3 Channels | Datasheet | TBC |
| EA-PSB 10000 2U | 0–1.5 kW / 0–3 kW | 0–60 V up to 0–1500 V | 0–6 A up to 0–120 A per channel | 1 Channel | Datasheet | Product Manual |
