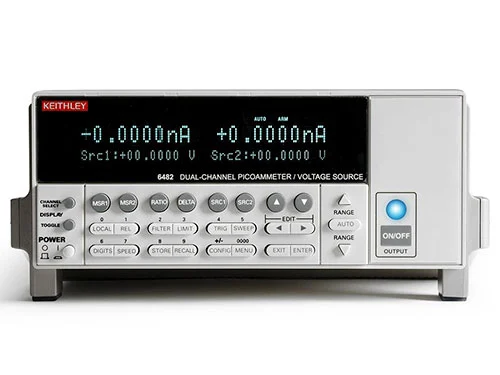

The cost-effective 5½-digit Model 6485 Picoammeter can measure currents from 10fA to 20mA, at speeds up to 1000 readings per second. The Model 6487 Picoammeter/Voltage provides higher accuracy and faster rise times than the 6485, a 500V source, and a damping function for use with capacitive devices. The Model 6482 Dual-Channel Picoammeter/Voltage Source offers higher measurement resolution than the Model 6485 or Model 6487 and dual, independent 30V voltage bias sources.
| Model | Current Range | Number of Channels | PC Interface | Resistance | Source | Datasheet | Product Manual |
|---|---|---|---|---|---|---|---|
| 6485 | 2nA – 20mA | 1 | GPIB, RS-232 | – | – | Datasheet | Product Manual |
| 6487 | 2nA – 20mA | 1 | GPIB, RS-232 | 10Ω – 10^15Ω | 0 – ±500V | Datasheet | Product Manual |
| 6482 | 2nA – 20mA | 2 | GPIB, RS-232 | – | 0 – ±30V, each channel | Datasheet | Product Manual |
