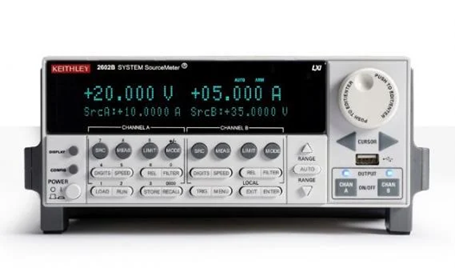

Keithley’s Series 2600B System SMU instruments are the industry standard current-voltage source and measure solution for highly automated production test applications. Both dual- and single-channel models tightly integrate a precision power supply, true current source, DMM, and electronic load with pulse generating capabilities. Plus, TSP® technology runs complete test programs for automated system applications, and TSP-Link® technology enables daisy-chaining up to 64 channels for high volume parallel test.
| Model | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution (Current / Voltage) | Power | Datasheet | Product Manual |
|---|---|---|---|---|---|---|---|
| 2601B | 1 | 10 A | 40 V | 100 fA / 100 nV | 200 W | Datasheet | Product Manual |
| 2611B | 1 | 10 A | 200 V | 100 fA / 100 nV | 200 W | Datasheet | Product Manual |
| 2604B | 2 | 10 A | 40 V | 100 fA / 100 nV | 200 W | Datasheet | Product Manual |
| 2614B | 2 | 10 A | 200 V | 100 fA / 100 nV | 200 W | Datasheet | Product Manual |
| 2602B | 2 | 10 A | 40 V | 100 fA / 100 nV | 200 W | Datasheet | Product Manual |
| 2612B | 2 | 10 A | 200 V | 100 fA / 100 nV | 200 W | Datasheet | Product Manual |
| 2635B | 1 | 10 A | 200 V | 0.1 fA / 100 nV | 200 W | Datasheet | Product Manual |
| 2634B | 2 | 10 A | 200 V | 1 fA / 100 nV | 200 W | Datasheet | Product Manual |
