Testing portable, battery-operated devices under real-word conditions demands a DC power supply that can simulate a battery’s performance over a wide range of conditions.

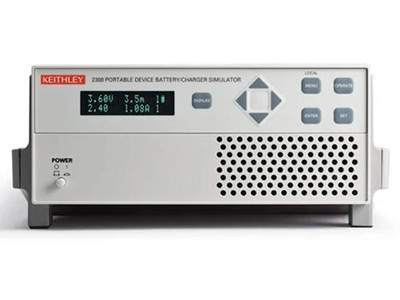

Series 2300 battery simulating power supplies can simulate both a battery’s output resistance and output voltage response. The dual-channel versions of these power supplies provide one channel to act like a battery and sink current for simulating a discharged rechargeable battery; the other channel supplies voltage for testing a device’s charge control circuitry. The new 2306-LAN Dual-Channel Battery Charger / Simulator provides a LAN communication interface through the added RJ-45 connector on the rear of the instrument.
| Model | Description | Number of Outputs | Maximum Voltage | Maximum Current | Connectivity | Datasheet | Product Manual |
|---|---|---|---|---|---|---|---|
| 2303 | High Speed Precision PS w Readback, 45W, 5mA | 1 | 15 V | 5 A | GPIB | Datasheet | Product Manual |
| 2302 | Battery Simulator | 1 | 15 V | 5 A | GPIB | Datasheet | Product Manual |
| 2308 | Portable Device Battery Charger/Simulator | 2 | 15 V | 5 A | GPIB | Datasheet | Product Manual |
| 2306-LAN | Dual Channel Battery Charger/Simulator | 2 | 15 V | 5 A | LAN | Datasheet | Product Manual |
| 2306 | Dual Channel Battery Charger/Simulator | 2 | 15 V | 5 A | GPIB | Datasheet | Product Manual |
