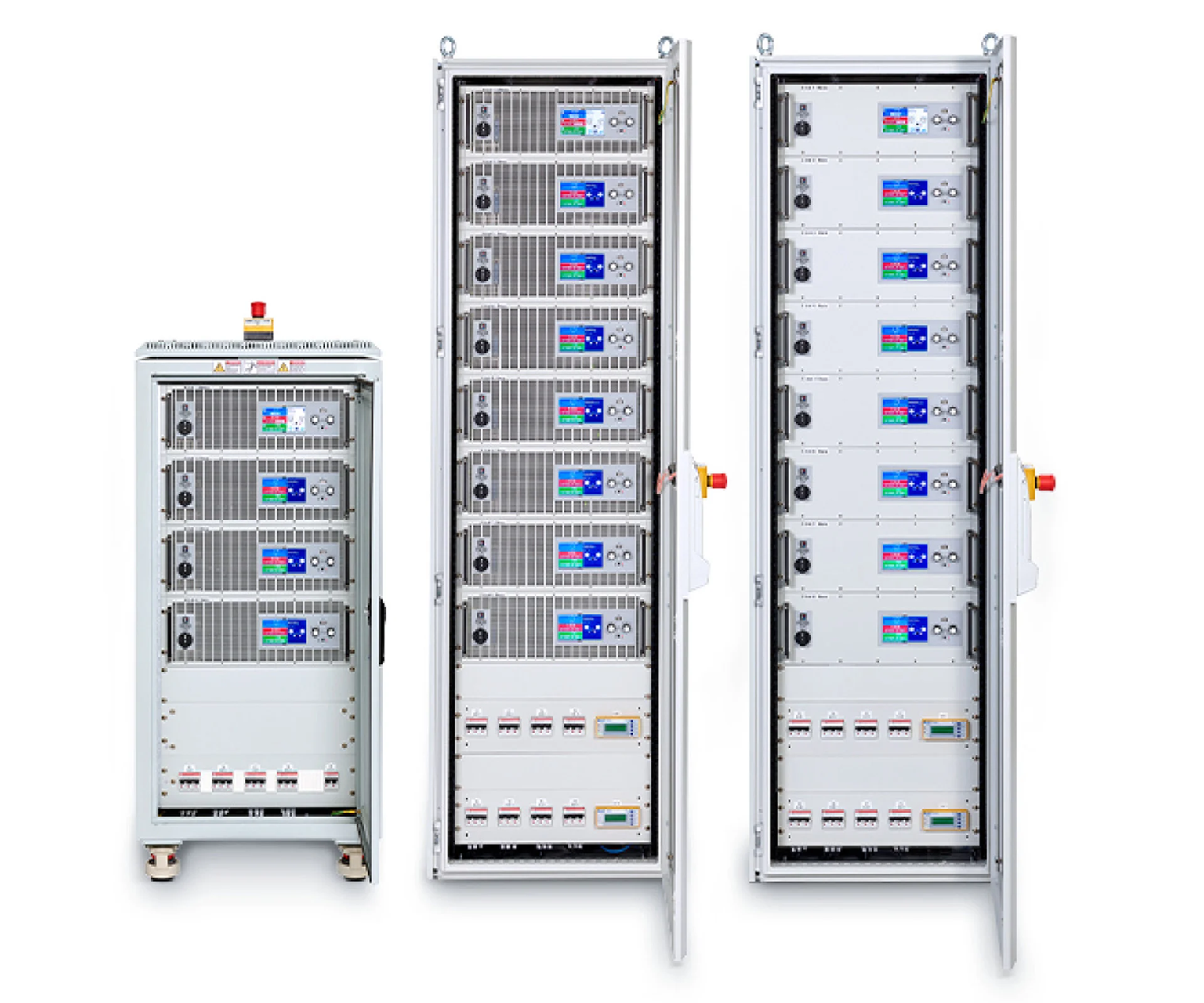

Configure 3U, 4U and 6U devices into 42U, 38U, 24U and 15U racks. Combine EA-10000 and EA-10000 Industrial series bidirectional power supplies, programmable power supplies, or regenerative loads. System performance can be increased by connecting devices in parallel. In a 42U rack with 5 units of 60 kW you can reach 300 kW, for the maximum power of 3.84 MW you can connect up to 64 units in 13 racks.
| Model | Power | Voltage | Current Range | Channels | Datasheet |
|---|---|---|---|---|---|
| EA-FCTS 20920-720 | 0–180 kW | 0–920 V | 0–720 A per channel | 1 Channel | Datasheet |
| EA-BPTS 20920-720 | 0–180 kW | 0–920 V | 0–720 A per channel | 1 Channel | Datasheet |
| EA-BMTS 20200-840-2 | 0–60 kW | 0–200 V | 0–840 A per channel | 2 Channels | Datasheet |
| EA-BCTS 20010-600-18 | 0–6 kW | 0–10 V | 0–600 A per channel | 18 Channels | Datasheet |
