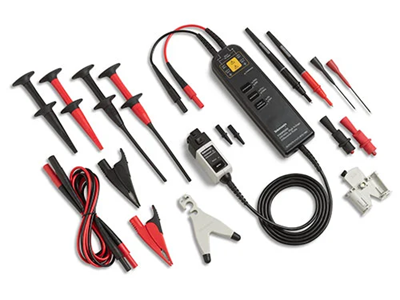

A high voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at ground. High voltage differential probes from Tektronix can be used for signals up to 6000 V. This type of high voltage probe is the best choice for making non-ground referenced, floating or isolated measurements in large part due to its common mode rejection capability. These products are designed, manufactured, and serviced by Tektronix.
Tektronix High Voltage Differential Probe solutions offer:
Choose a High Voltage Differential Probe model:
| Model | Attenuation | Bandwidth | Input Impedance | Maximum Voltage | Datasheet | Product Manual |
|---|---|---|---|---|---|---|
| P5200A | 50X / 500X | 50 MHz | 10 MΩ || 2 pF | 500X: ±1300 V 50X: ±130 V | Datasheet | TBC |
| P5205A | 50X / 500X | 100 MHz | 10 MΩ || 2 pF | 500X: ±1300 V 50X: ±130 V | Datasheet | TBC |
| P5202A | 20X / 200X | 100 MHz | 5 MΩ || 2 pF | 200X: ±640 V 20X: ±64 V | Datasheet | TBC |
| THDP0200 | 50X / 500X | 200 MHz | 10 MΩ || 2 pF | 500X: ±1500 V 50X: ±150 V | Datasheet | Product Manual |
| TMDP0200 | 25X / 250X | 200 MHz | 5 MΩ || 2 pF | 250X: ±750 V 25X: ±75 V | Datasheet | Product Manual |
| THDP0100 | 100X / 1000X | 100 MHz | 40 MΩ || 2.5 pF | 1000X: ±6000 V 100X: ±600 V | Datasheet | Product Manual |
| P5210A | 100X / 1000X | 50 MHz | 40 MΩ || 2.5 pF | 1000X: ±5600 V 100X: ±560 V | Datasheet | TBC |
| TDP0500 | 5X / 50X | 500 MHz | 1 MΩ || ≤1 pF | 50X: ±42 V 5X: ±4.2 V | Datasheet | Product Manual |
| TDP1000 | 5X / 50X | 1 GHz | 1 MΩ || ≤1 pF | 50X: ±42 V 5X: ±4.2 V | Datasheet | Product Manual |
| P6251 | 5X / 50X | 1 GHz | 1 MΩ || ≤1 pF | 50X: ±42 V 5X: ±4.2 V | Datasheet | TBC |
