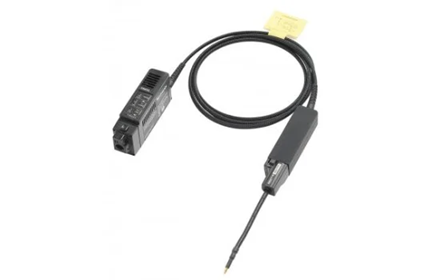

Uncover the fast, floating signals that your non-isolated probes are hiding. IsoVu Probe Technology virtually eliminates common mode interference using optical isolation. This delivers accurate differential measurements on reference voltages slewing ±60kV at 100V/ns or faster. And with our IsoVu Generation 2 design, you get all the benefits of IsoVu technology at 1/5 of the size.
With versatile MMCX connectors and an unmatched combination of bandwidth, dynamic range, and common mode rejection, IsoVu Gen 2 probes are setting new standards for isolated probe technology.
Choose your IsoVu Voltage Probe model:
| Model | Bandwidth | Differential Voltage | Common Mode Voltage | Common Mode Rejection Ratio | Fiber Cable Length | Datasheet | Product Manual |
|---|---|---|---|---|---|---|---|
| TIVP02 | 200 MHz | ±2500 V | ±60 kV | DC: 160 dB 100 MHz: 100 dB 200 MHz: 100 dB | 2 meters | Datasheet | Product Manual |
| TIVP02L | 200 MHz | ±2500 V | ±60 kV | DC: 160 dB 100 MHz: 100 dB 200 MHz: 100 dB | 10 meters | Datasheet | Product Manual |
| TIVP05 | 500 MHz | ±2500 V | ±60 kV | DC: 160 dB 100 MHz: 100 dB 200 MHz: 100 dB | 2 meters | Datasheet | Product Manual |
| TIVP05L | 500 MHz | ±2500 V | ±60 kV | DC: 160 dB 100 MHz: 100 dB 200 MHz: 100 dB | 10 meters | Datasheet | Product Manual |
| TIVP1 | 1 GHz | ±2500 V | ±60 kV | DC: 160 dB 100 MHz: 100 dB 200 MHz: 100 dB | 2 meters | Datasheet | Product Manual |
| TIVP1L | 1 GHz | ±2500 V | ±60 kV | DC: 160 dB 100 MHz: 100 dB 200 MHz: 100 dB | 10 meters | Datasheet | Product Manual |
